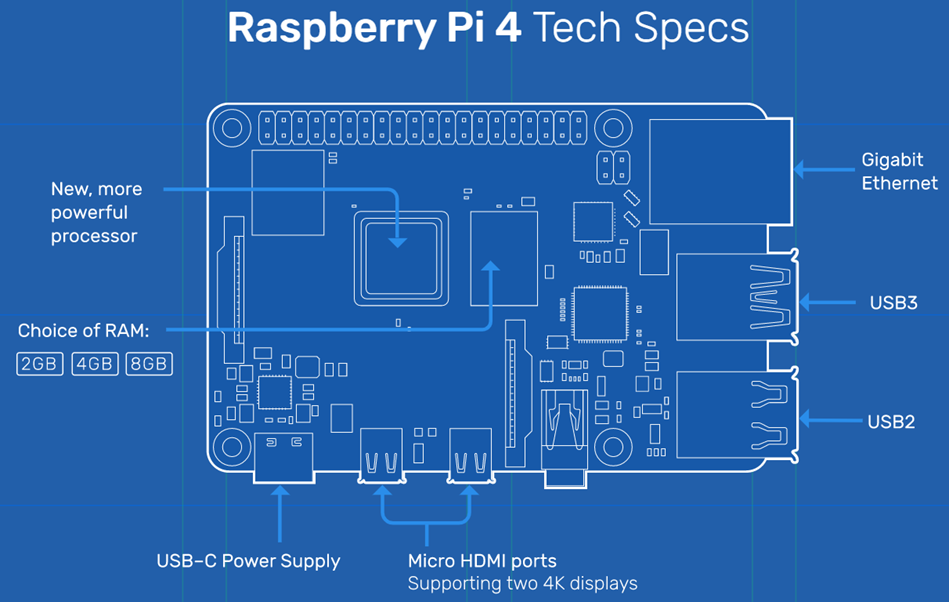

·        Broadcom BCM2711, Quad core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz

·        2GB, 4GB or 8GB LPDDR4-3200 SDRAM (depending on model)

·        2.4 GHz and 5.0 GHz IEEE 802.11ac wireless, Bluetooth 5.0, BLE

·        Gigabit Ethernet

·        2 USB 3.0 ports; 2 USB 2.0 ports.

·        Raspberry Pi standard 40 pin GPIO header (fully backwards compatible with previous boards)

·        2 × micro-HDMI ports (up to 4kp60 supported)

·        2-lane MIPI DSI display port

·        2-lane MIPI CSI camera port

·        4-pole stereo audio and composite video port

·        H.265 (4kp60 decode), H264 (1080p60 decode, 1080p30 encode)

·        OpenGL ES 3.1, Vulkan 1.0

·        Micro-SD card slot for loading operating system and data storage

·        5V DC via USB-C connector (minimum 3A*)

·        5V DC via GPIO header (minimum 3A*)

·        Power over Ethernet (PoE) enabled (requires separate PoE HAT)

·        Operating temperature: 0 – 50 degrees C ambient

* A good quality 2.5A power supply can be used if downstream USB peripherals consume less than 500mA in total.



Accessories (optional)

(*) Read User Manual at https://www.waveshare.com/w/upload/1/19/7inch_HDMI_LCD_%28B%29_User_Manual.pdf

(**) Read Home Assistant integrating instruction at: https://www.home-assistant.io/integrations/zha

Raspberry Pi 4 USB-C Power Supply

5V / 3A Adapter OEM

Micro SD card

Class10 high speed: 16GB, 32GB, 64GB,…


Aluminium Alloy Case for Raspberry Pi 4, Dual Cooling Fans

HDMI Cables

MicroHDMI and HDMI cables: OEM


7inch HDMI LCD with case (*):

-    IPS screen, 1024x600 hardware resolution, configurable by software (up to 1920x1080)

-    Toughened glass capacitive touch panel, 6H hardness

-    High quality PC case, optional tilt angle: 30°/50°

Wifi-UART Module

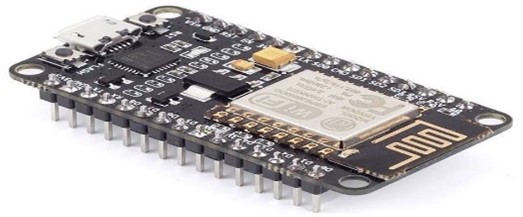

Module Wifi ESP8266 NodeMCU Lua CP2102

- Support Wifi 802.11 b/g/n 2.4Ghz; Wi-Fi Direct (P2P), soft-AP

- TCP/IP protocol stack integrated

- TR switch, balun, LNA, power amplifier and matching network

USB Zigbee stick


- Zigbee Controller module, Zigbee 3.0.

- Communication: USB port

- Connect Home Assistant via the zigpy-znp library for zigpy (Texas Instruments CC2530/CC2531 USB stick)(**)

Other accessories
